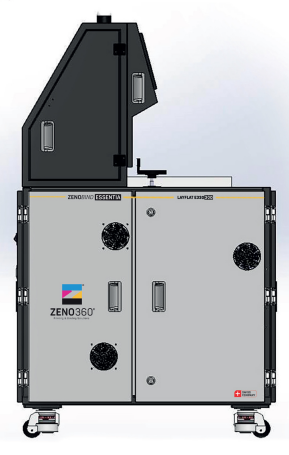

Introducing Zeno E330-300

The Zeno LayFlat E330-300 is a fully automatic, all-in-one system built to produce premium LayFlat book blocks from single sheets.

The system delivers exceptional high quality photobooks giving you the flexibility to glue sheets back-to-back or insert cardboard for added rigidity and durability.

With creasing and folding seamlessly combined in a single station, the Zeno E330-300 maximises productivity while taking up minimal floor space, making it the ultimate compact solution for professional LayFlat photobook production.

Compact yet powerful, the Zeno E330-300 stands out as a truly innovative solution in the market.

Zeno Layflat E330-300 Key Features

• All-In-One System: Integrated auto feeding, gluing, and assembling.
• Small footprint can fit in a small shop.
• Easy to operate via touch screen.
• Flexible production for different sizes: 6”x6” to 13”x 13”
• LayFlat binding technology.
• Hotmelt gluing technology: lower cost & quicker dry-to-dry time.

Zeno Layflat E330-300 Product Specifications

• Book block width: 6”-13” (152mm-330mm)
• Book block length (open): 12”-19” (305mm-660mm)
• Maximum thickness of book block: 30mm
• Cardboard: With or without
• Glue: Hot melt
• Thickness of cardboard: 0.35mm -0.6mm
• Thickness of paper: 0.15mm-0.3mm
• Speed: 300 cycles/hour
• Power Supply: 220V 50HZ Single phase
• Maximum power consumption: 2000W
• Machine dimension: 700mm(L) x800mm (W) x1400mm (H)
• Weight (approx.) : 650kg
• Air compressor: Not required
• Noise: <70db
