| Model |

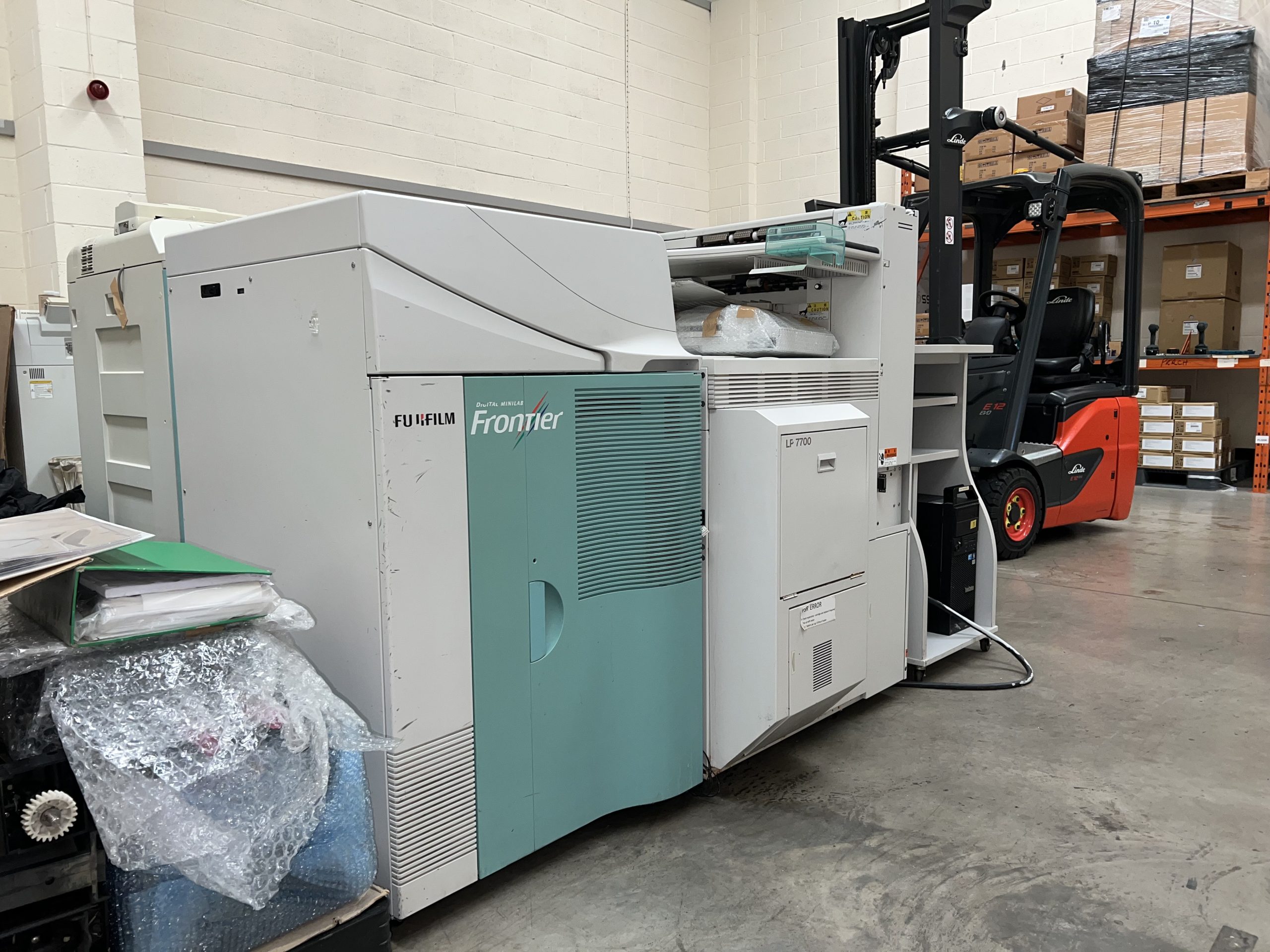

Frontier LP 7700 |
|
|---|---|---|
| Processing Capacity (actual production) |
135 negative film (24-exp.)
Print capacity (Processed by SP-500) |
|
| Media print
Print capacity (Digital still camera with 4.0 million pixels) *with highspec PC |
|
|
| Print size |
82.5 x 117 mm — 305 x 914.4 mm |
|
| Processing chemicals |
Chemical system CP-49E |
|
| Footprint space |
Approx. 1.40m2 Approx. 1.69m2 *1 Approx. 1.83m2 *2 |
|
| Type |
Floor type, normal light operation (laser printer, processor, cutter, sorter in one unit) |
|
| Exposure system |
Scanning exposure system using RGB laser, 300 x 600 dpi |
|
| Paper magazines |
Two built-in paper magazines (standard), three built-in paper magazines and four built-in paper magazines (factory optional) |
|
| Paper |
FUJICOLOR Crystal Archive Paper (silver-halide) |
|
| Paper widths |
8.9cm, 10.2cm, 11.7cm, 12.7cm, 15.2cm, 20.3cm, 21.0cm, 25.4cm, 27.9cm, 30.5cm |
|
| Back printing |
Double 40-character lines in backside print |
|
| Printer sorter |
14-order sorter or 17-order sorter (selectable) |
|
| Print condition set-up |
Automatic calibration by built-in calibrator |
|
| Processor carriage |
Double-line, sheet carriage |
|
| Processing time (Dry to dry) |
1 min. 42 sec. |
|
| Power requirements |
AC 200 – 240V (50/60Hz) Single-phase 31A, Three-phase three-wire 20A, Three-phase four-wire 14A, Approx. 6.7 KVA |
|
| Dimensions |
W 1,660 x D 953 x H 1,375 mm W 2,060 x D 953 x H 1,375 mm *1 W 2,260 x D 953 x H 1,375 mm *2 |
|
| Weight (during actual operation) |
Approx. 572 kg (Approx. 665.4 kg) |
|
