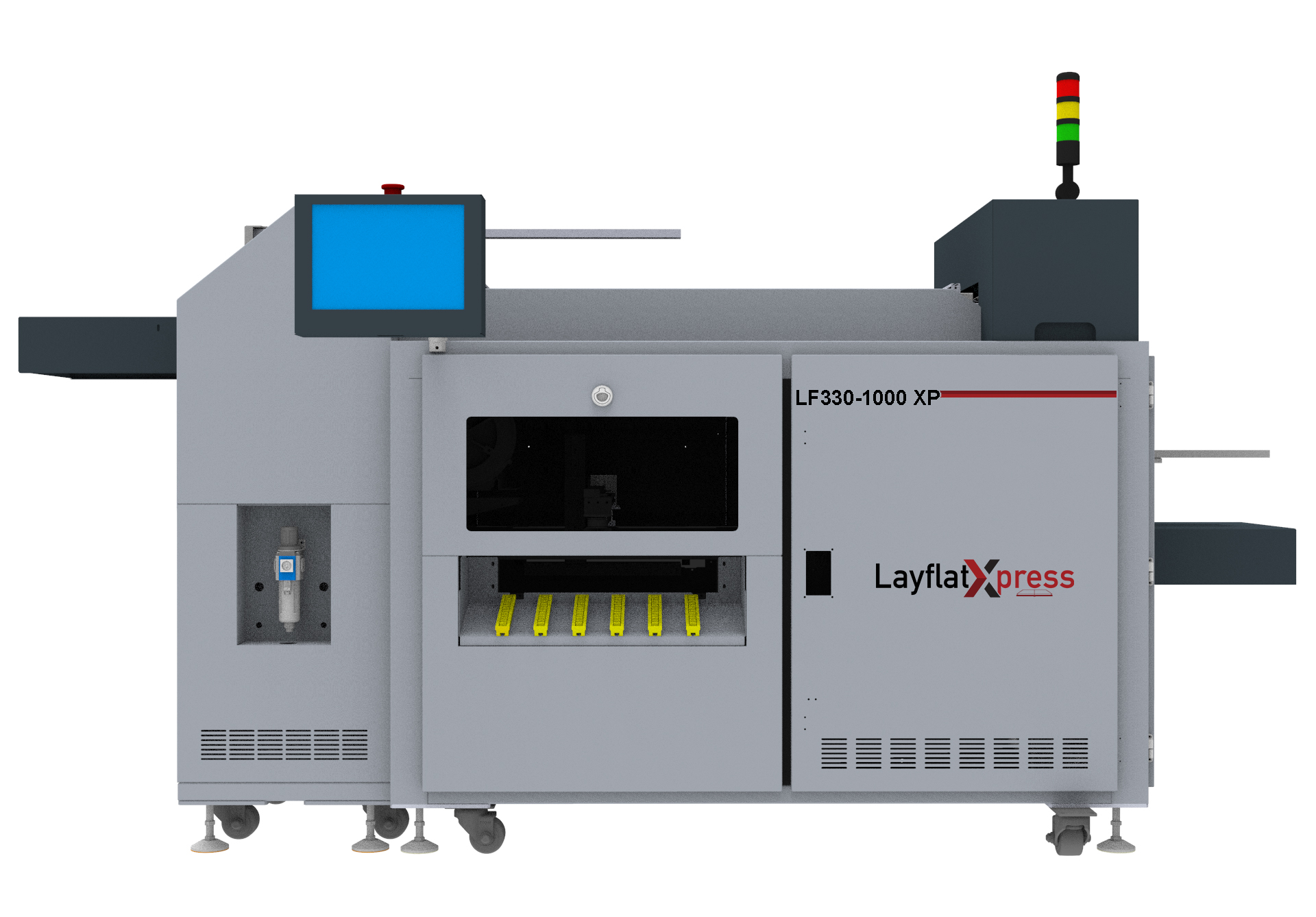

LayflatXpress LF330-1000XP – Fully Automatic Layflat machine

Description

LayflatXpress LF330-1000XP from LayflatXpress is a fully automatic book block system which produces Layflat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station, creaser and folder are included, it is high speed and good for professional photobook.

Key Features

• All in one system: Integrated auto feeding, gluing and assembling units;
• Automatic paper alignment system;
• Easy to operate via touch screen;
• Flexible production for different sizes: 6”x6” to 13”x 18”;
• Layflat binding technology;
• Hotmelt gluing technology: cheaper cost and faster delivery;

Brand

LayflatXpress

Specs

Specifications

• Book block height : 6”-13” ( 152mm-330mm)
• Book block width (open) : 12”-36” (305mm-915mm)
• Maximum thickness of book block : 50mm
• Cardboard : With or without
• Glue : Hot melt
• Thickness of cardboard : 0.35mm-1mm
• Thickness of paper : 0.15mm-0.3mm
• Speed : 1000 cycles /hour
• Power Supply : 220V 50HZ Single phase
• Maximum power consumption : 2000W
• Machine dimension : 3.06m(L) x1.02m (W) x1.38m (H)
• Weigh(approx.) : 650kg
• Air compressor : 0.6-0.7mpa, >180L/min
