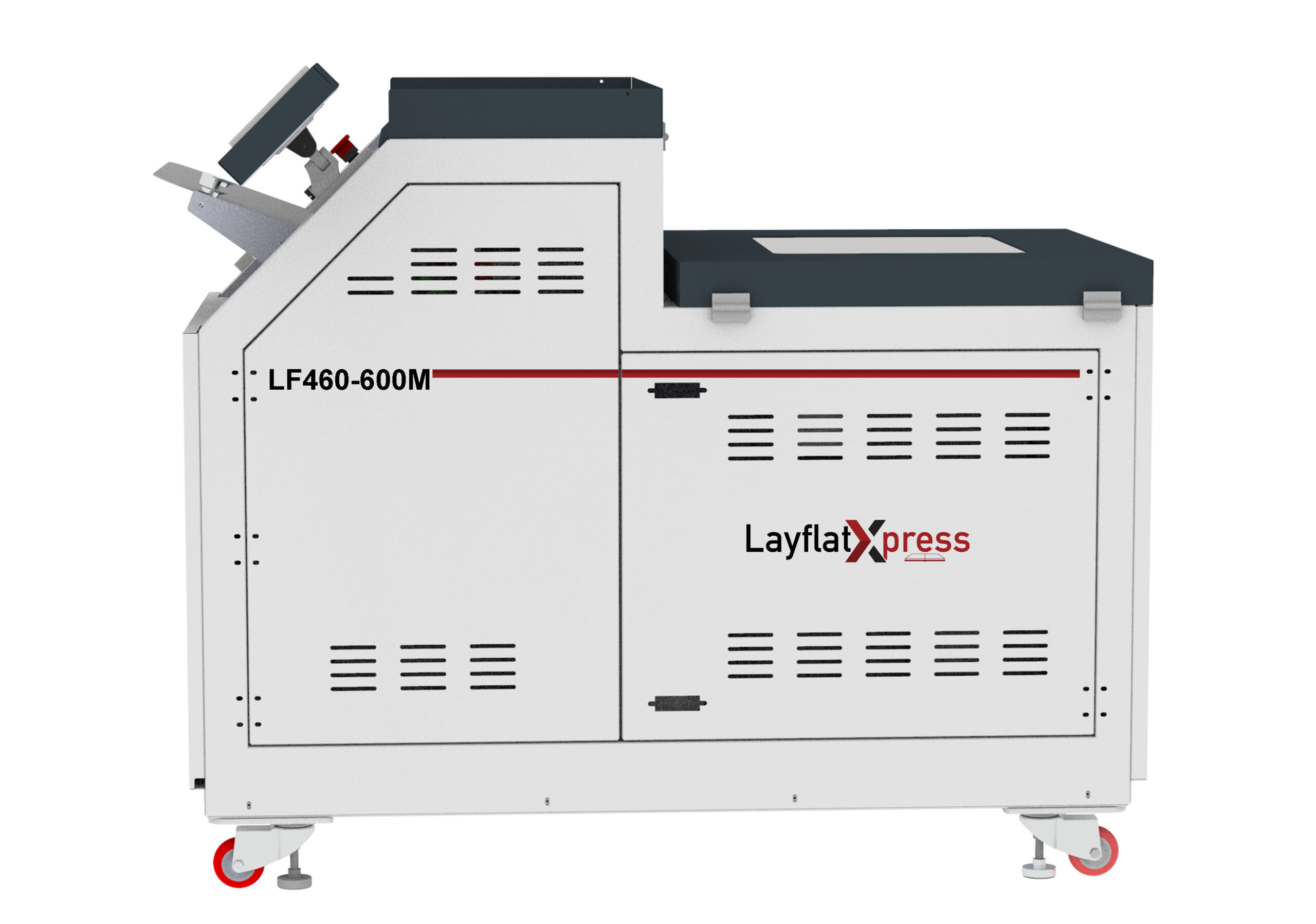

LayflatXpress LF460-600M – Semi-Automatic Layflat machine

Description

LayflatXpress LF460-600M from LayflatXpress is a semi automatic book block system which produces Layflat book blocks from single folded sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets.

• Manual feeder for folded sheets and cardboard ;
• Easy to operate via touch screen;
• Flexible production for different sizes: 6”x6” to 18“x18“;
• Layflat binding technology;
• Hotmelt gluing technology: cheaper cost and faster delivery;

Brand

LayflatXpress

Specs

Specifications

• Book block height : 6”-18” (152mm-460mm)
• Book block width (open) : 12”-36” (305mm-915mm)
• Maximum thickness of book block : 50mm
• Cardboard : With or without
• Glue : Hot melt
• Thickness of cardboard : 0.35mm-1mm
• Thickness of paper : 0.15mm-0.3mm
• Speed : 600 cycles/hour
• Power Supply : 220V 50HZ Single phase
• Maximum power consumption : 2000W
• Machine dimension : 1.214m (L) x 0.8m (W) x 1.16m (H)
• Weigh(approx.) : 350kg
• Air compressor : 0.6-0.7mpa, >180L/min
