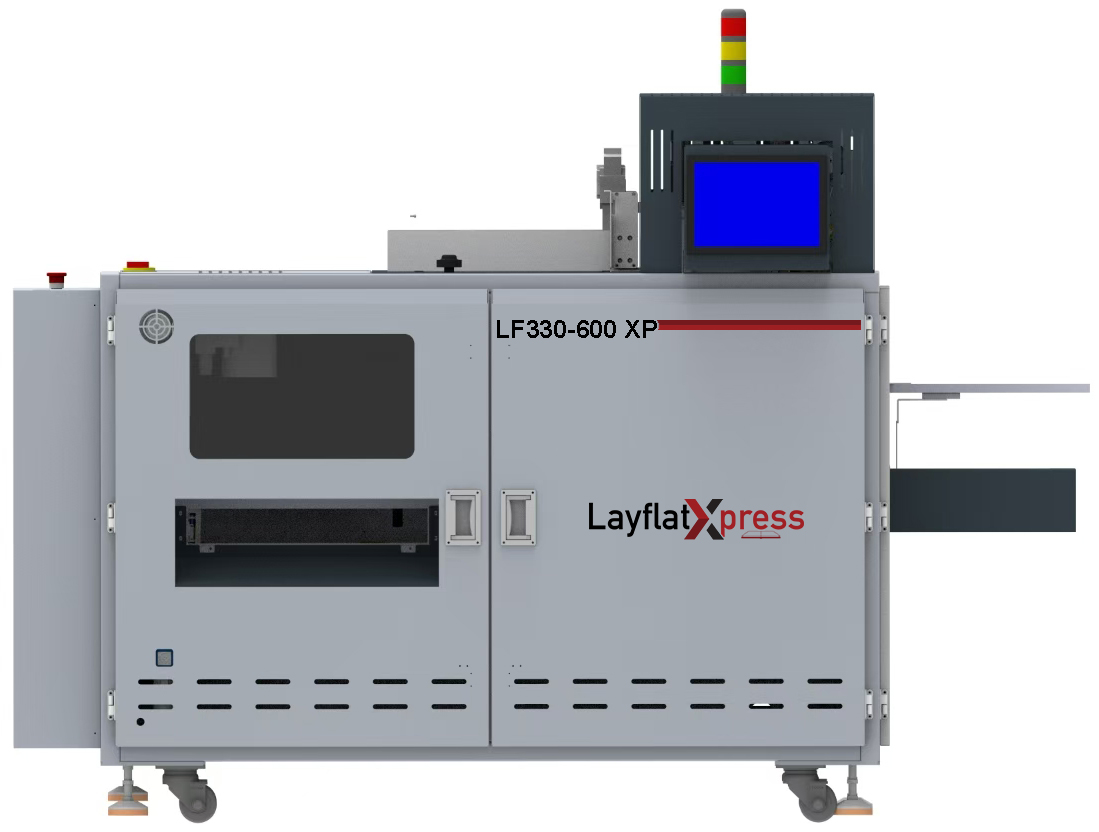

Layflat Xpress LF330-600XP – Fully Automatic book solution

Description

LF330-600XP from LayFlatXpress is a fully automatic book block system which produces Layflat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station, creaser and folder are included, it is compact and can run in small place.

Key Features

• All in one system: Integrated auto feeding, gluing, assembling ;
• Easy to operate via touch screen
• Flexible production for different sizes: 6”x6” to 13”x 18”;
• Layflat binding technology;
• Hotmelt gluing technology: cheaper cost and faster delivery;

Brand

LayflatXpress

Specs

Specifications

• Book block height : 6”-13” ( 152mm-330mm)
• Book block width (open) : 12”-36” ( 305mm-915mm)
• Maximum thickness of book block : 50mm
• Cardboard : With or without
• Glue : Hot melt
• Thickness of cardboard : 0.35mm -1mm
• Thickness of paper : 0.15mm-0.3mm
• Speed : 600 sheets /hour ( without cardboard), 400 sheets /hour ( with cardboard)
• Power Supply : 220V 50HZ Single phase
• Maximum power consumption : 2000W
• Machine dimension : 2.13 m(L) x 0.85 m(W) x 1.45 m(H)
• Weigh(approx.) : 400kg
• Air compressor : 0.6-0.7mpa, >180L/min
