Description

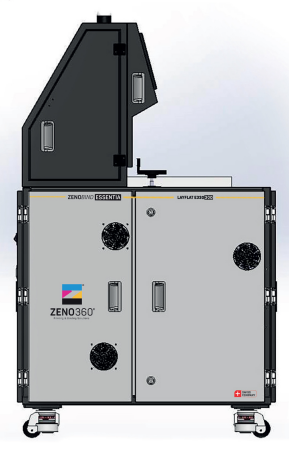

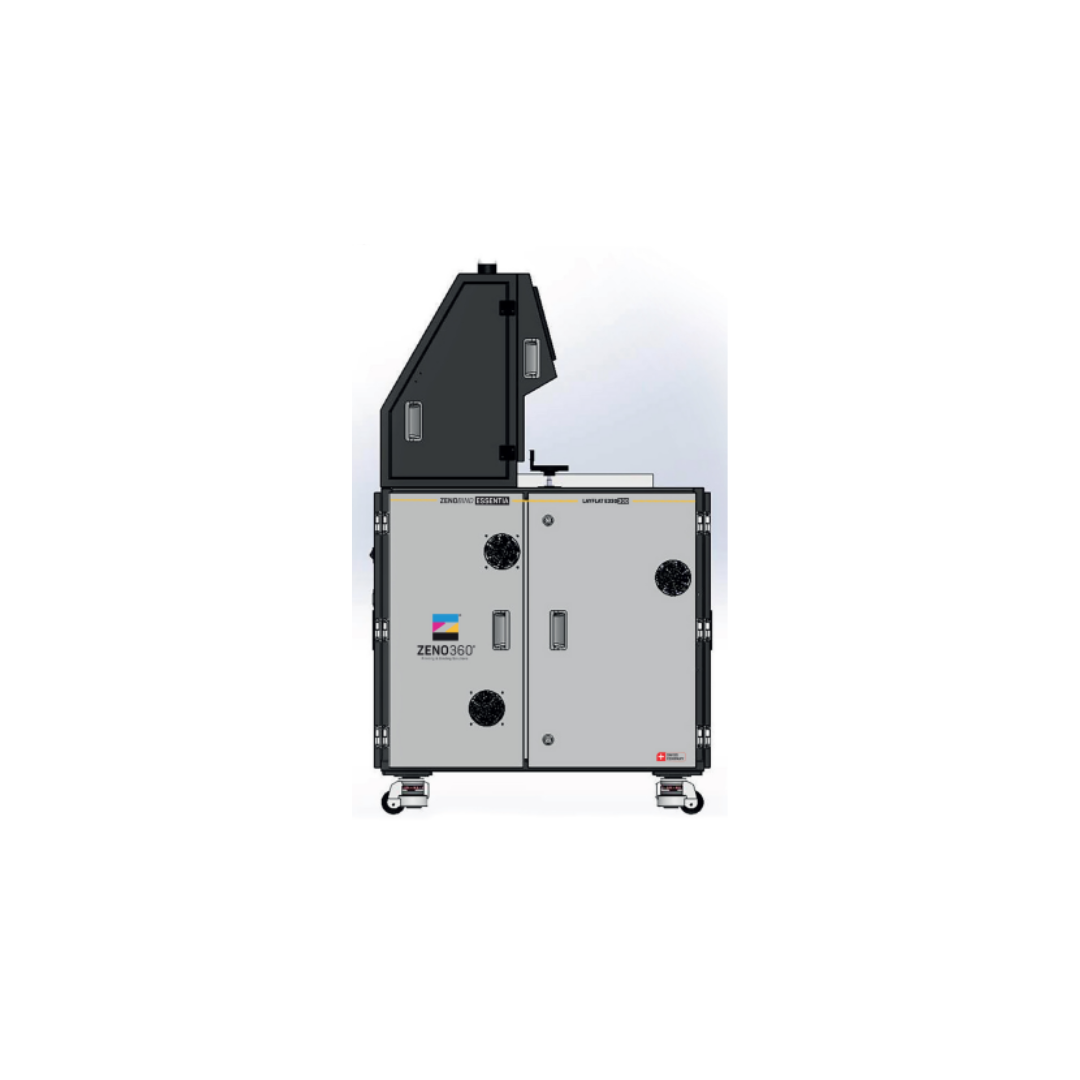

Zeno Layflat E330-300

Zeno Layflat E330-300 is a fully automatic book block system which produces LayFlat book blocks from single sheets. It can make premium book formats, not only by gluing paper back to back, but also by inserting cardboard between sheets. It is all-in-one station, creaser and folder are included, it is compact and can run in small place.

This unique and innovative compact system is unlike anything else in the market. It delivers high quality photobooks, whilst allowing sheets to be glued back-to-back or by inserting cardboard inserts for superior rigidity.

By integrating creasing and folding in a single station, it maximises efficiency while requiring minimal floor space, making it the ultimate, compact solution for professional Layflat photobook production.

Key Features:

• All in one system: Integrated auto feeding, gluing, assembling.
• Small footprint can fit in a small shop.
• Easy to operate via touch screen.
• Flexible production for different sizes: 6”x6” to 13”x 13”.
• Layflat binding technology.
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time.

VIDEO: E330-300 Live in Action

For more information on Zeno LayFlat products click here.

Brand

Zeno 360

Specs

Zeno Layflat E330-300 Product Specifications

• Book block width: 6”-13” (152mm-330mm)
• Book block length (open): 12”-26”  (305mm-660mm)
• Maximum thickness of book block: 30mm
• Cardboard: With or without
• Glue: Hot melt
• Thickness of cardboard: 0.35mm -0.6mm
• Thickness of paper: 0.15mm-0.3mm
• Speed: 300 cycles /hour
• Power Supply: 220V 50HZ Single phase
• Maximum power consumption: 2000W
• Machine dimension: 700mm(L) x800mm (W) x1400mm (H)
• Weigh(approx.) : 650kg
• Air compressor: No required
• Noise: <70db
