Description

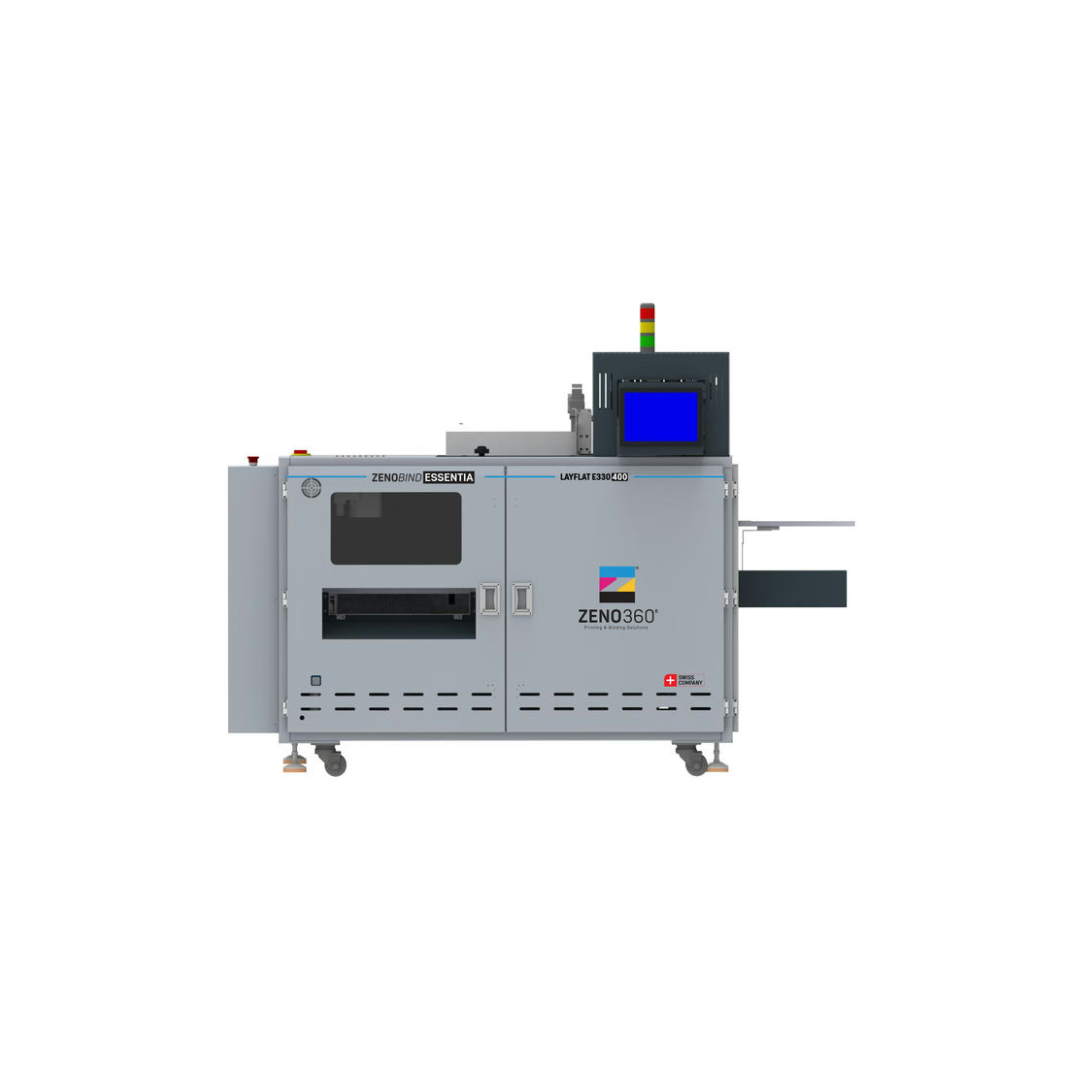

Zeno Layflat E330-400

Zeno Layflat E330-400 is a fully automatic book block system which produces LayFlat book blocks from single sheets.

It can make premium book formats, not only by gluing paper back to back, but also by inserting cardboard between sheets.

It is all in one station, with creaser and folder included, it is compact and can run in small place.

Key Features

• All in one system: Integrated auto feeding, gluing, assembling
• Easy to operate via touch screen
• Flexible production for different sizes: 6″x6″ to 13″x 12″
• Layflat binding technology
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time

Click here for more information.

Click here for more action on our YouTube Channel.

Brand

Zeno 360

Specs

• Book block height : 6″-13″ (152mm-330mm)
• Book block width (open) : 12″-24″ (305mm-610mm)
• Maximum thickness of book block : 50mm
• Cardboard : With or without
• Glue : Hot melt
• Thickness of cardboard : 0.35mm -1mm
• Thickness of paper : 0.15mm-0.3mm
• Speed : 600 sheets/hour (without cardboard), 400 sheets/hour (with cardboard) 220V 50HZ Single phase
• Power Supply : 220V 50HZ Single phase
• Maximum power consumption : 2000W
• Machine dimension : 2.13m(L) * 0.85m(W) * 1.45m(H)
• Weigh(approx.) : 400kg
• Air compressor : 0.6-0.7mpa, >180L/min
