Description

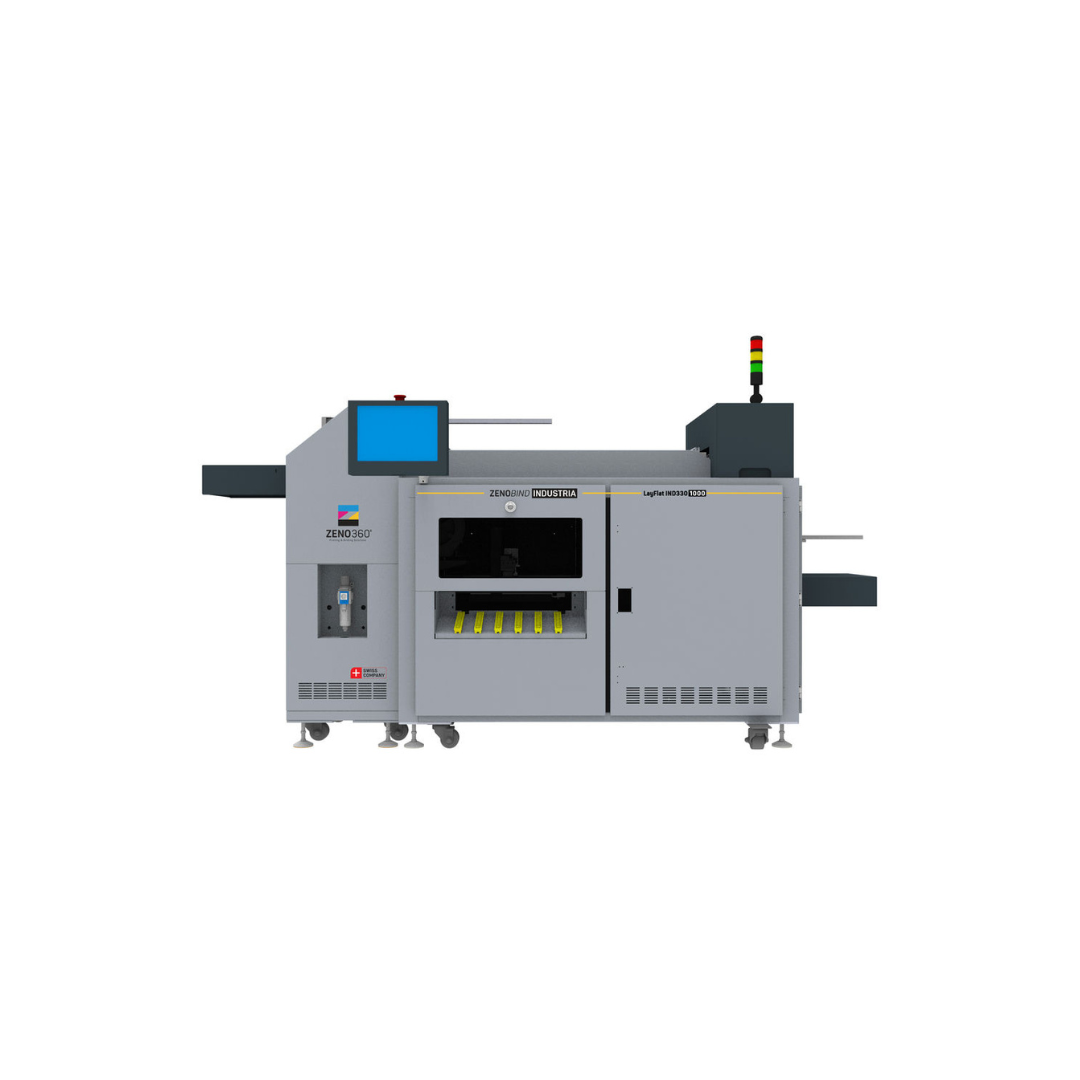

Zeno Layflat IND330-1000

Zeno Layflat IND330-1000 is a fully automatic book block system which produces Layflat book blocks from single sheets.

It can make photo book, not only by gluing paper back to back, but also by inserting cardboard between sheets.

It is all in one station with creaser and folder included, it is high speed and good for professional photo book.

Key Features:

• All in one system: Integrated auto feeding, gluing and assembling units
• Automatic paper alignment system
• Easy to operate via touch screen
• Flexible production for different sizes: 6”x6” to 13”x 18”
• Layflat binding technology
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time

Click here for more information.

Click here for more action on our YouTube Channel.

Brand

Zeno 360

Specs

• Book block height : 6”-13” ( 152mm-330mm)
• Book block width (open) : 12”-36” (305mm-915mm)
• Maximum thickness of book block : 50mm
• Cardboard : With or without
• Glue : Hot melt
• Thickness of cardboard : 0.35mm-1mm
• Thickness of paper : 0.15mm-0.3mm
• Speed : 1000 cycles /hour
• Power Supply : 220V 50HZ Single phase
• Maximum power consumption : 2000W
• Machine dimension : 3.06m(L) x1.02m (W) x1.38m (H)
• Weigh(approx.) : 650kg
• Air compressor : 0.6-0.7mpa, >180L/min

Brochure

Click on image to Download

Download
