Zeno LayFlat IND330-2000

Description

Zeno LayFlat IND330-2000

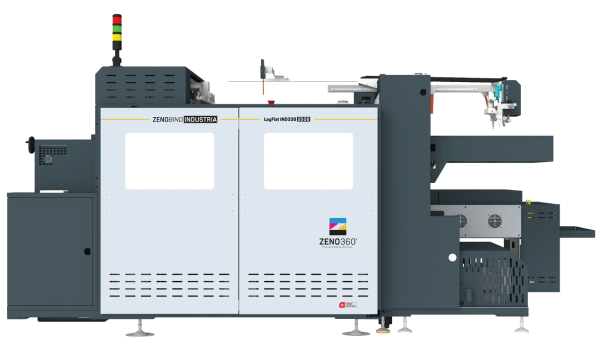

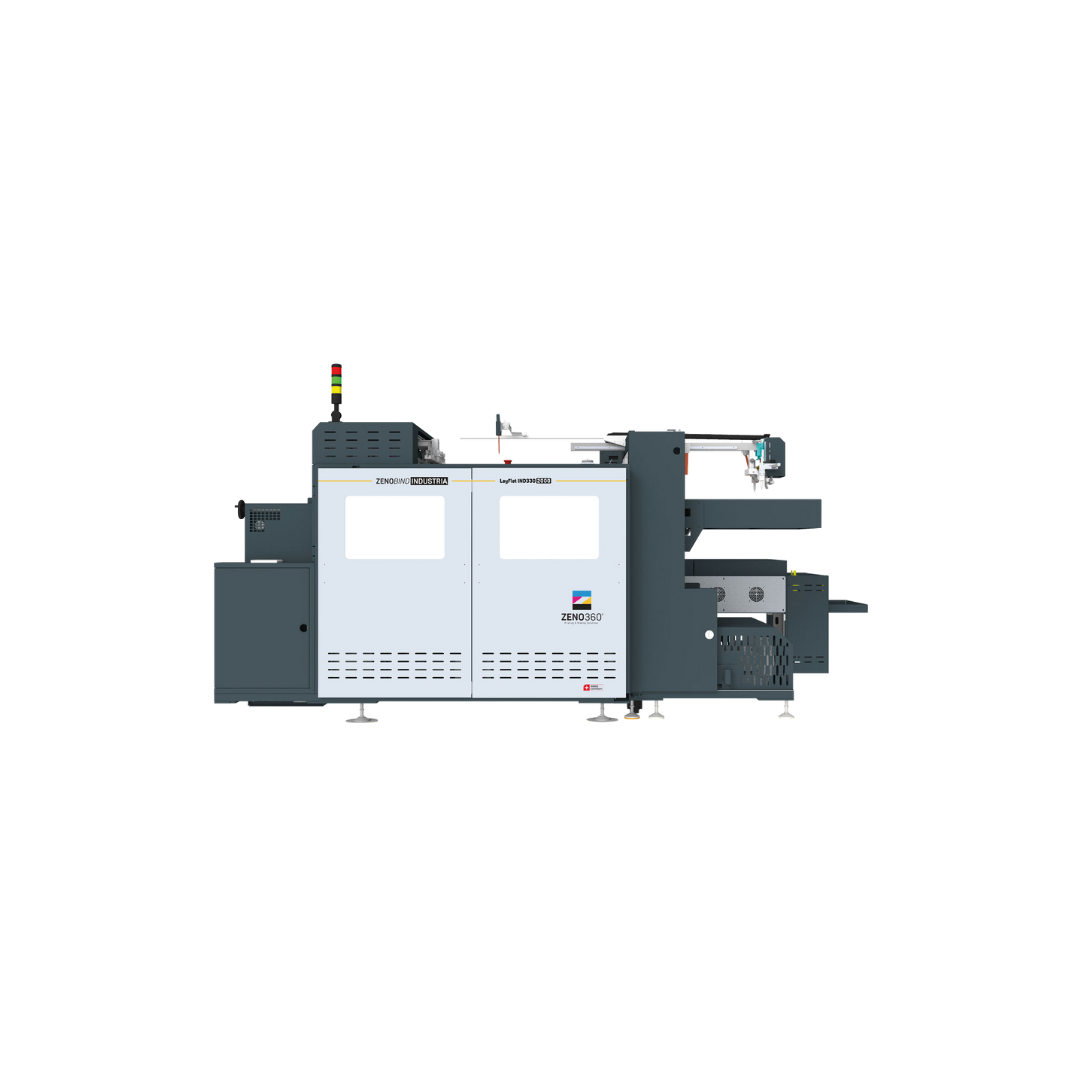

The Zeno360 LayFlat IND330-2000 is a high speed, fully automatic book block system which produces LayFlat book blocks from single sheets.

It is an all-in-one station, creaser, folder, and in-line heat press included.

The system is capable of making photo books either by gluing paper back-to-back sheets or by inserting cardboard between the sheets for a more rigid page.

It is a high speed machine good for producing coffee table books, journals, and notebooks, textbooks, corporate publications, product books, and children’s books.

Key Features

• All-in-one system with integrated auto feeding, gluing, assembling units, and in-line heat press
• High speed; 2000 cycles/hour
• Industrial grade; can run 24 hours per day, big volume paper and cardboard stacker
• Fully automatic; with barcode scanning for order production checking
• LayFlat binding technology
• Hotmelt gluing technology; lower cost and quicker dry-to-dry time

Brand

Zeno 360

Specs

Specifications

Book block height: 203 mm x 330 mm
Book block width (open): 355 mm x 750 mm
Maximum thickness of book block: 50 mm
Cardboard: With or without
Glue: Hot melt
Speed: 2000 cycles/hour
Power Supply: 220V 50HZ Single phase
Maximum Power Consumption: 2700 W

Machine dimension: 2.95 (1) x 1.80 (W) x 1.50 (H) m

Weight: 1500 kg
Air Compressor: 0>0.8mpa, 300L/min
Thickness of cardboard: 0.35 mm-1mm
Thickness of paper: 0.15 mm-0.3 mm
