Description

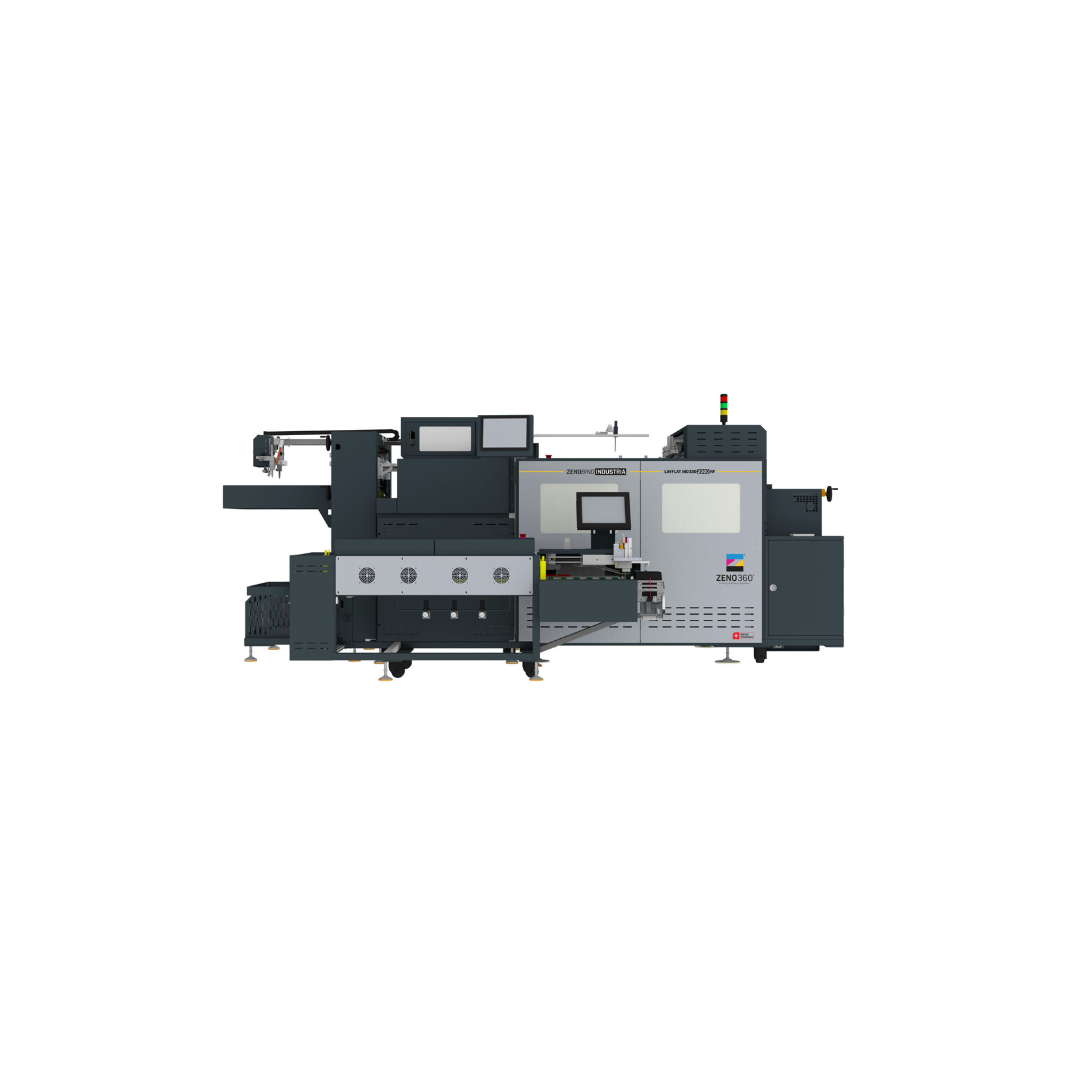

Zeno Layflat IND330-2000 RF

Key Features:

• All in one system: Integrated auto feeding, gluing, assembling units and inline automatic book press
• High speed: 2000 cycles/hour
• Industrial grade: can run 24 hours per day, large volume paper and cardboard stacker
• Fully automatic: with bar code scanning system, don’t need operator intervention
• Layflat binding technology
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time

Click here for more information.

Click here for more action on our YouTube Channel.

Brand

Zeno 360

Specs

• • Book block height : 8″-13″ (203mm – 330mm)
  • Book block width (open) : 14″ – 29.5″ (355mm -750mm)
  • Maximum thickness of book block : 50mm
  • Cardboard : With or without
  • Glue : Hot melt
  • Thickness of cardboard : 0.15mm-0.3mm
  • Thickness of paper : 0.35mm-1mm
  • Speed : 2000 cycles/hour
  • Power Supply : 220V 50HZ Single phase
  • Maximum power consumption : 2700W
  • Machine dimension : 2950(L) * 1800(W) * 1500(H) * mm
  • Weigh(approx.) : 1500kg
  • Air compressor : 0.65 -0.8MPa 200L/min
