Description

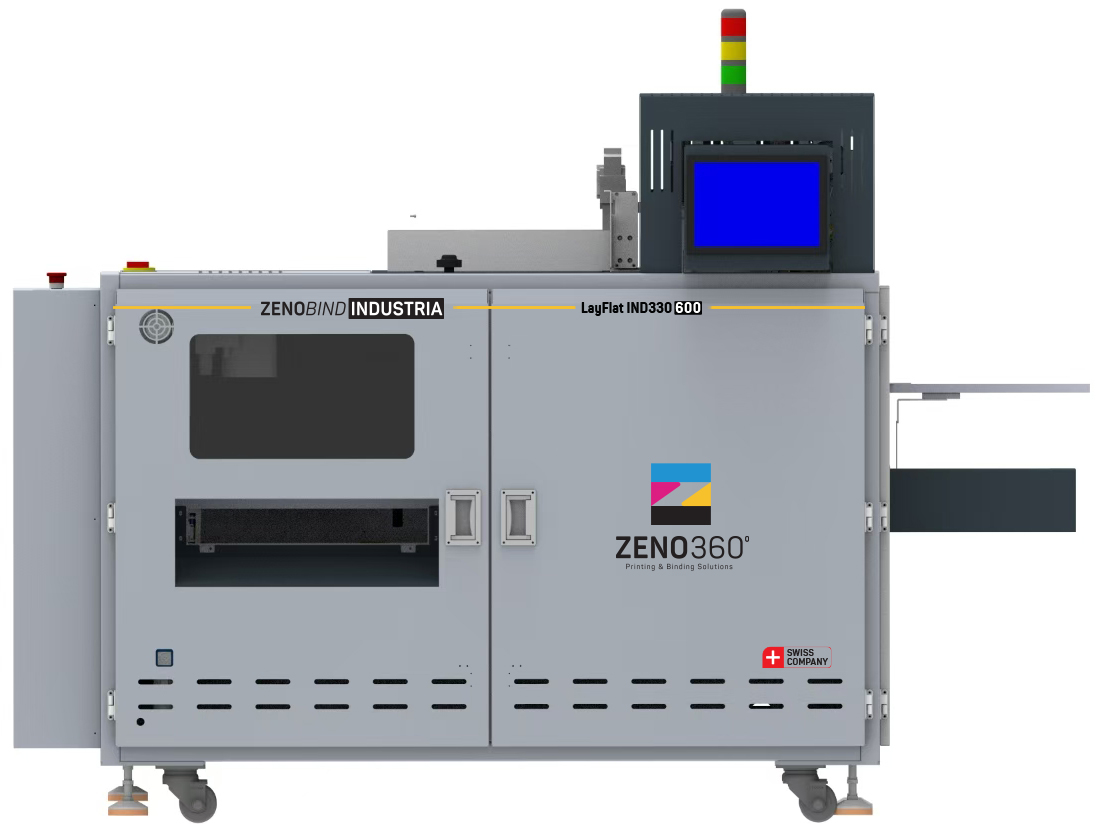

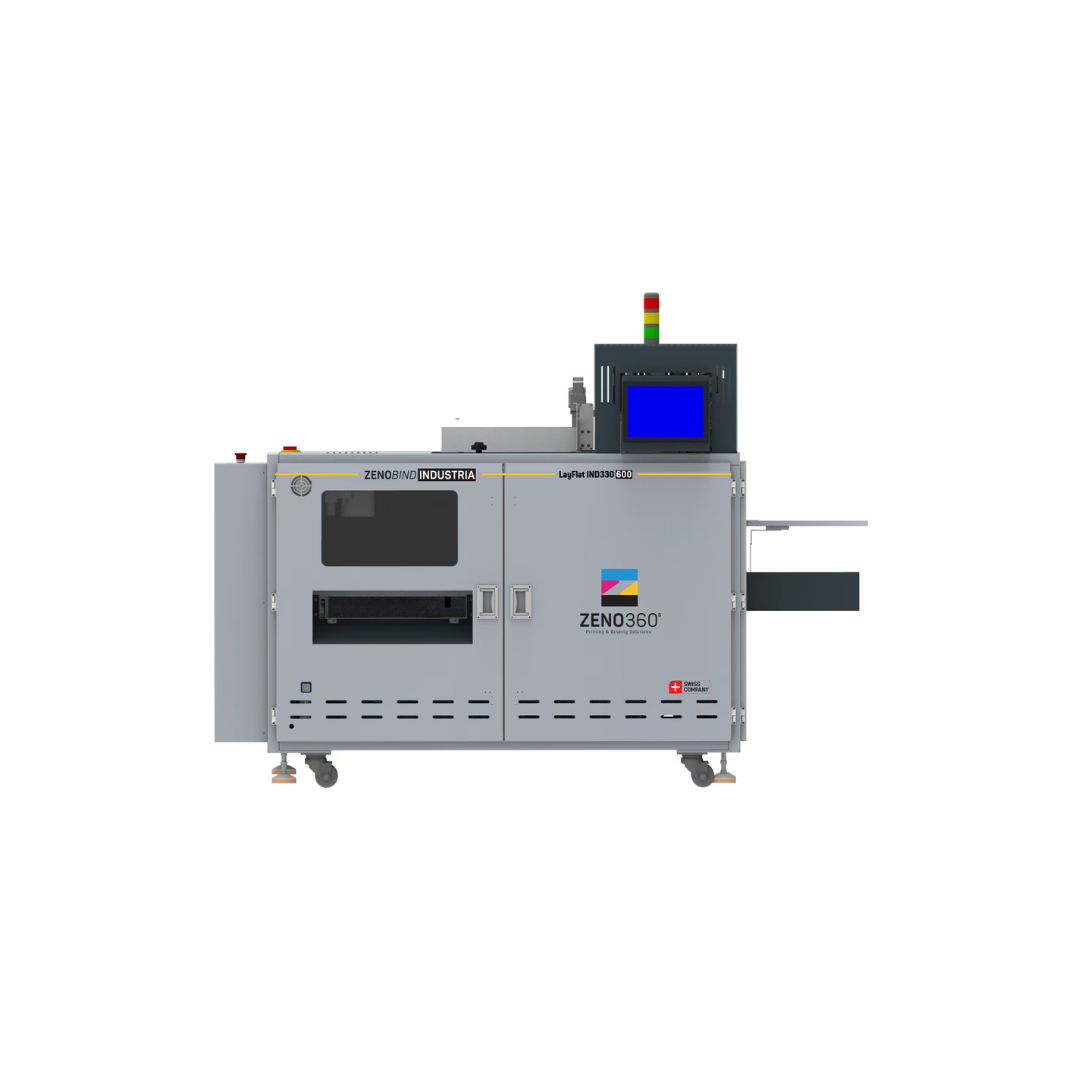

Zeno Layflat IND330-600

Zeno Layflat IND330-600 is a high capacity all-in-one system excellent for Layflat high quality photo books.

This unique, fully automatic system produces Layflat book blocks from single sheets.

The system is capable of making photo books either by gluing paper back-to-back sheets or by inserting cardboard between the sheets for a more rigid page.

It is all-in-one station, with creaser and folder included, it is medium and ideal for all types of photo books.

A compact design allows minimum floor space being required for operation.

Key Features

• All in one system: Integrated auto feeding, gluing, assembling ;
• Easy to operate via touch screen
• Flexible production for different sizes: 6”x6” to 13”x 18”;
• Layflat binding technology;
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time.

Click here for more information.

VIDEO: Watch the IND330-600 live in action below

VIDEO: Memory of Royal Ascot below

Brand

Zeno 360

Specs

Zeno360 IND330-600 Product Specifications:

• Book block height: 6”-13” (152mm – 330mm)
• Book block width (open): 12”-36” (305mm – 915mm)
• Maximum thickness of book block: 50mm
• Cardboard: With or without
• Glue: Hot melt
• Thickness of cardboard: 0.35mm -1mm
• Thickness of paper: 0.15mm-0.3mm
• Speed: 600 sheets / hour (without cardboard), 400 sheets /hour (with cardboard)
• Power Supply: 220V 50HZ Single phase
• Maximum power consumption: 2000W
• Machine dimension: 2.13 m(L) x 0.85 m(W) x 1.45 m(H)
• Weigh(approx.): 400kg
• Air compressor: 0.6-0.7mpa, >180L/min
