Description

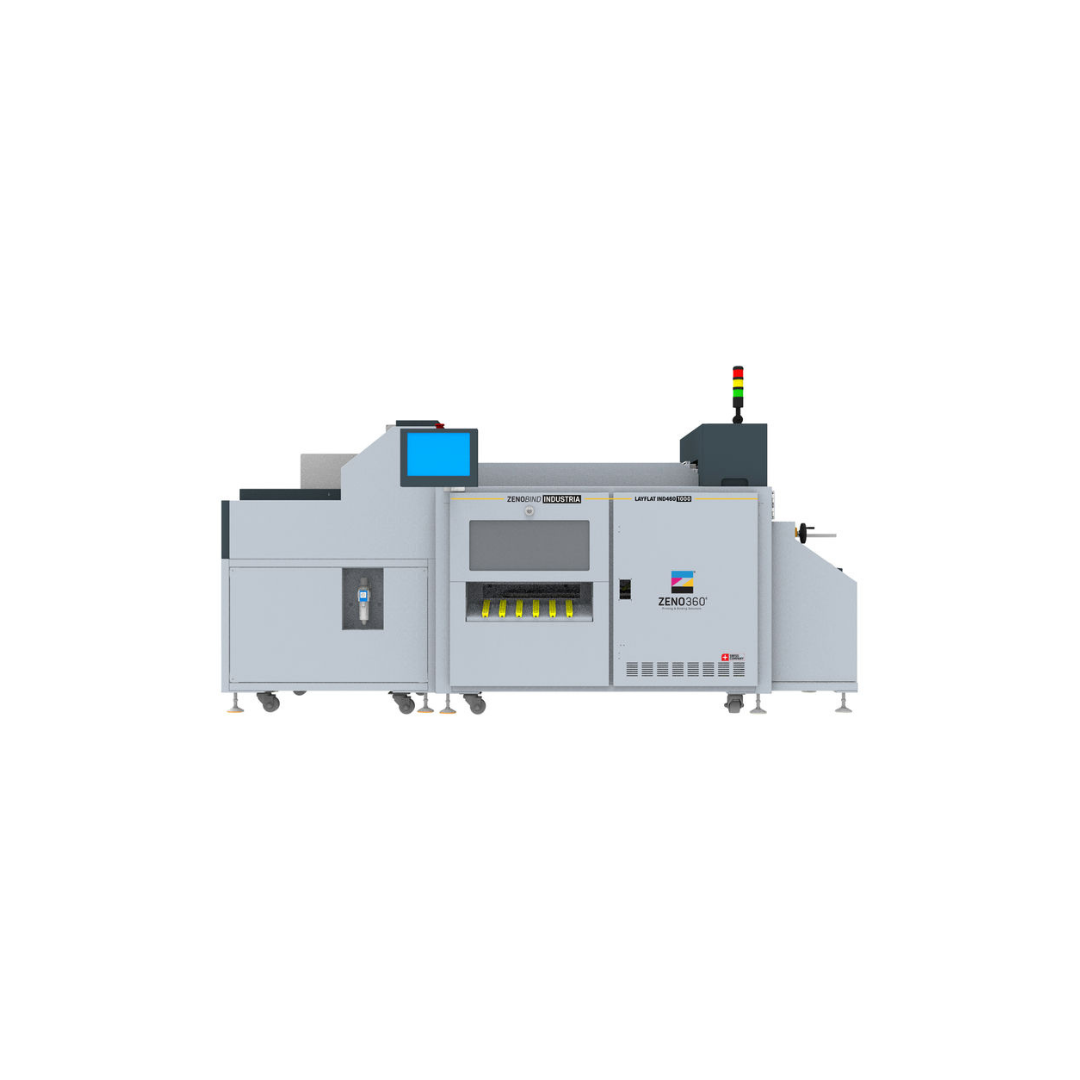

Zeno Layflat IND460-1000

Key Features:

• All in one system: Integrated auto feeding, creasing, folding, spinning pressing, gluing and assembling units
• Automatic paper alignment system
• Auto feeder for sheets and cardboard
• Easy to operate via touch screen
• Flexible production for different sizes: 6″ x 6″ (152mm x 152mm) to 18″ x 18″ (460mm x 460mm)
• Layflat binding technology
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time

Click here for more information.

Click here for more action on our YouTube Channel.

Brand

Zeno 360

Specs

• Book block height : 6″-18″ (152mm – 460mm)
• Book block width (open) : 12″-36″ (305mm – 915mm – 915mm)
• Maximum thickness of book block : 50mm
• Cardboard : With or without
• Glue : Hot melt
• Thickness of cardboard : 0.35mm -1mm
• Thickness of paper : 0.15mm-0.3mm
• Speed : 1000 cycles/hour (without cardboard), 500 cycles/hour (with cardboard)
• Power Supply : 220V 50 Hz – single phase
• Maximum power consumption : 2000W
• Machine dimension : 3050(L) * 1150(W) * 1420(H) * mm
• Weigh(approx.) : 750kg
• Air compressor : 0.65 -0.8MPa 200L/min
