Description

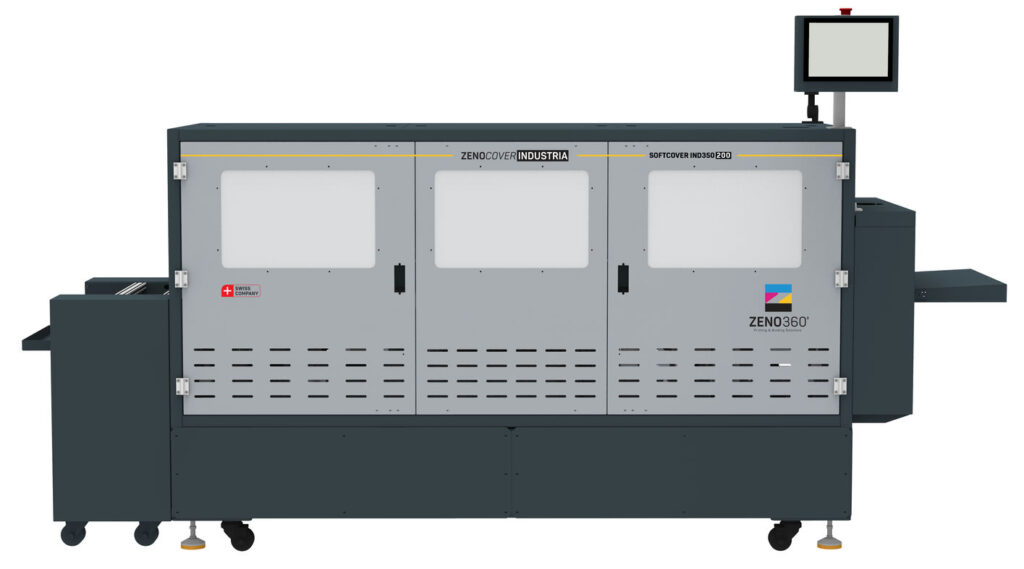

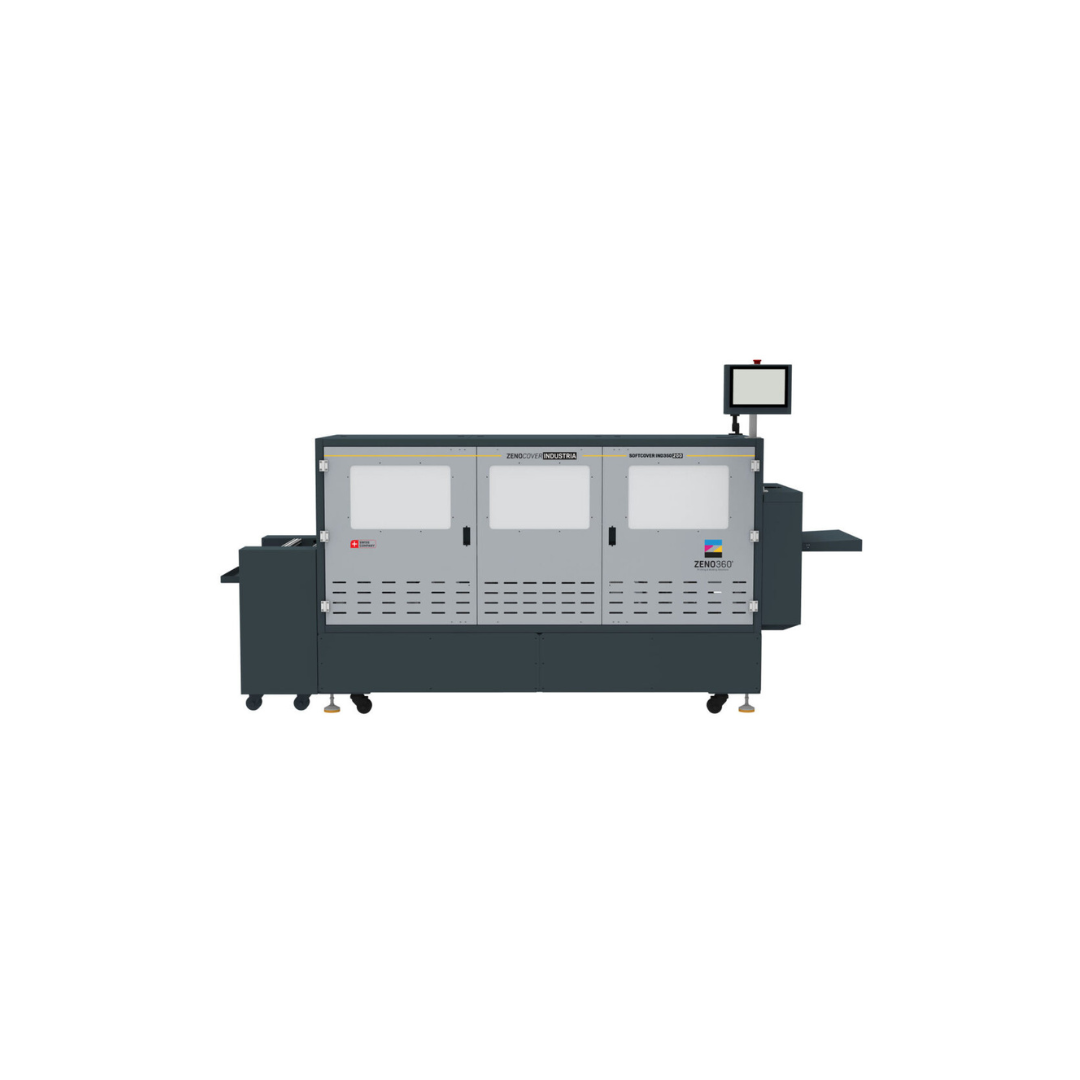

Zeno Softcover IND 350-200

The world’s first-ever optional in-line softcover finishing attachment compatible with Layflat IND460-1000, Layflat IND330-2000RF, Layflat IND530-2000RF, Layflat IND330-2000 and Layflat IND530-2000. Seamlessly connecting to the book presser, it automates the creation of books and brochures with softcovers. With flexible capabilities, it can produce both book blocks and softcovers effortlessly. Casing-in can be used as offline as well and with any of our Layflat models.

Key Features

• It connects to double book press and make the complete photo book with soft cover fully automatically or it can run as stand-alone machine
• The system offers flexibility allowing either a standard book block or book block with softcover to be produced
• Flexible sizes：from 6”x 6” up to 14”x 14

Brand

Zeno 360

Specs

Specifications

• Gluing technology: Hotmelt
• Book block height: 6”-14” (152mm-350mm)
• Book block width (open): 12”- 28″ (305mm-710mm)
• Thickness of the book block: 5mm-40mm
• Paper thickness: 150gsm -300gsm
• Power Supply: 220V 50HZ Single phase
• Maximum power consumption: 2000W
• Machine dimension (L*W*H): 3.254m x0.8m x1.76m
• Weight: 300kg
• Air compressor: >0.65mpa 100L/Min

Brochure

Click on image to Download

Download
