A UV DTF printer prints designs onto a clear film using UV-curable inks and then laminates and transfers the cured print onto various hard or curved surfaces like bottles, mugs, phone cases, wooden items, metal panels, and more.
Unlike traditional DTF for textiles (which requires heat pressing), UV DTF uses UV light to instantly cure the ink, turning it into a durable, self-adhesive decal that can be applied by peeling and sticking—no heat press needed.
Advantages of UV DTF Printing
Versatile substrates – Works on flat and curved rigid materials like ceramic, glass, metal, wood, leather, etc.
Instant curing – UV ink dries instantly under UV light, speeding up production times
High durability – Offers wear-resistant, vibrant prints, with inks containing fewer VOCs—for a more eco-friendly finish
No direct object printing required – Ideal for items that can’t fit in a flatbed or are sensitive to printing heat
Simplified process – Eliminates the need for weeding or masking; finished transfers are applied through peel-and-stick
About the actual machine

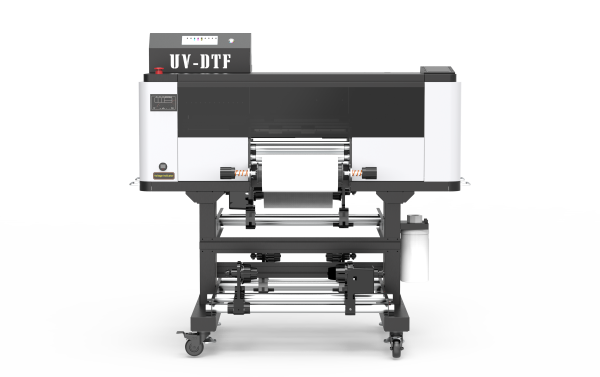

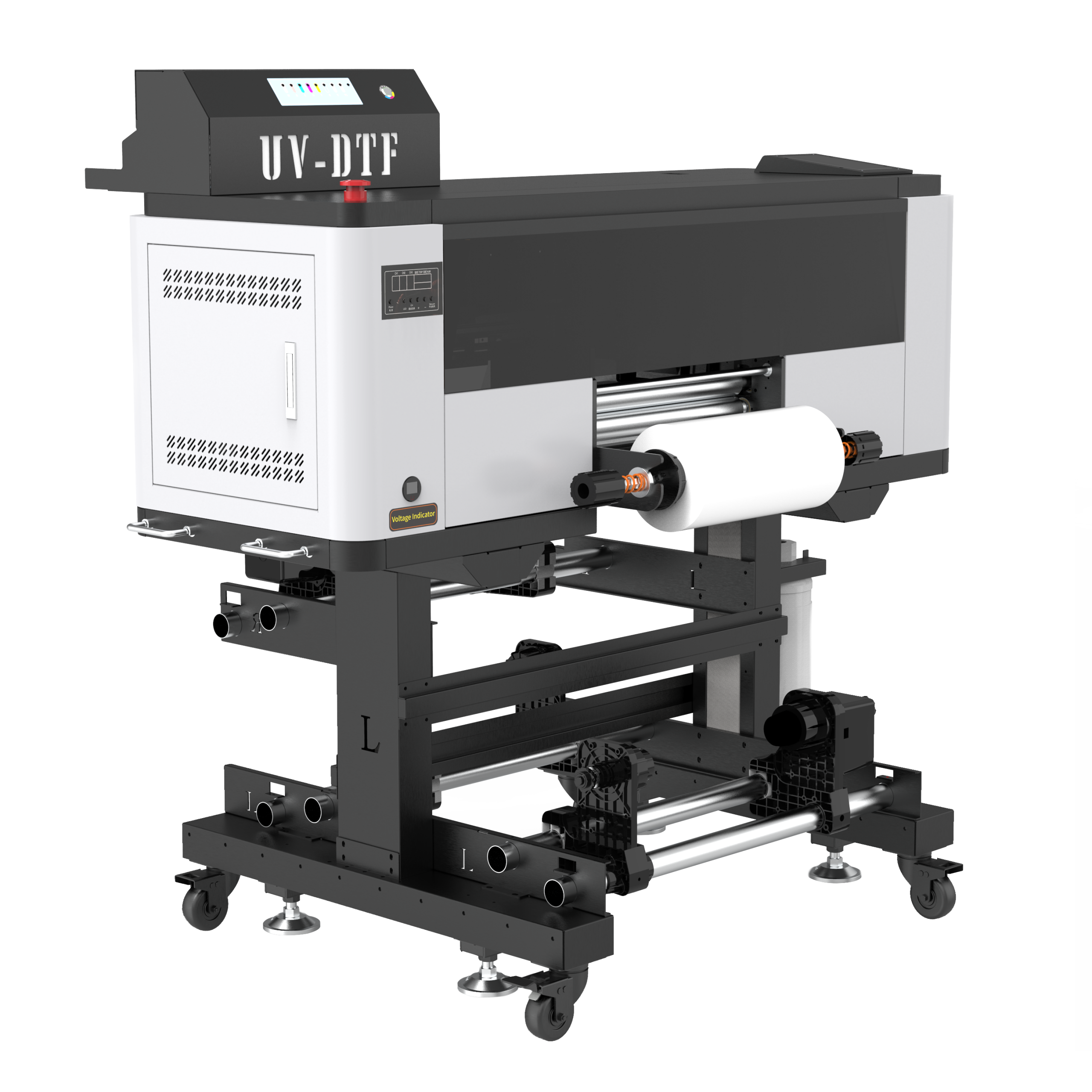

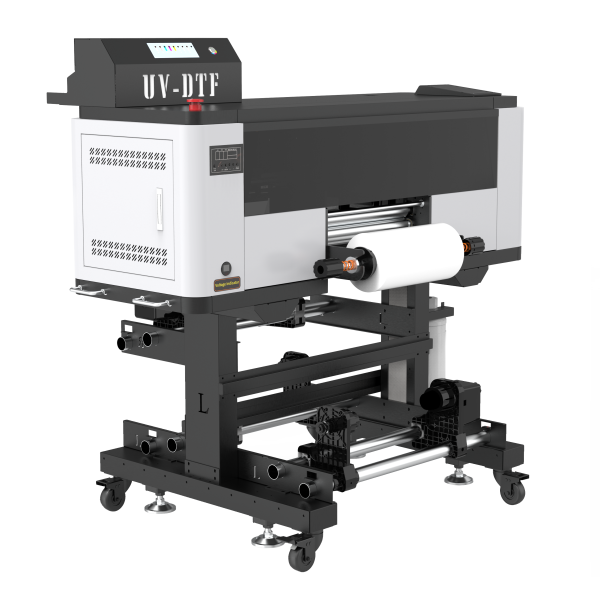

The UNI-303 is a 30cm UV DTF printer capable of printing and laminating in one process. It’s designed for efficiency, quality, and versatility.
Overall Features of the UNI-303 UV DTF
Print & Laminate in One: Streamline your workflow with integrated lamination.
Versatile Material Compatibility: Achieve exceptional adhesion on both rigid and flexible materials.
Hoson Board System: Easy to learn and operate for smooth production.
Air-Cooled UV LED Lamps: Separate systems for C+W colours and varnish for optimal curing.
Three-Stage Platform Heating & Vacuum Suction: Stable media handling with temperature and humidity monitoring.
Carriage Heating Plates: Maintain consistent head temperature for stable print quality.
Ink Low LED Alarm: Get alerts when ink in any tank is running low.
Anti-Collision Sensor: Protects print heads from accidental contact with raised surfaces.
Touchscreen Control Panel: Simplified, efficient operation at your fingertips.
Each UNI-303 is engineered with the latest UV LED digital printing technology, ensuring efficient, high-quality output for professional use.
Specifications:
Dimensions: 1420 × 750 × 920 mm (0.98 CBM)
Gross Weight: 196.5 KG
Max Speed: 4.5 m2/h
Board System: Hoson board – simple to operate and learn
Lighting: Air-cooled UV LED lamps for C+W colours and varnish.
