Description

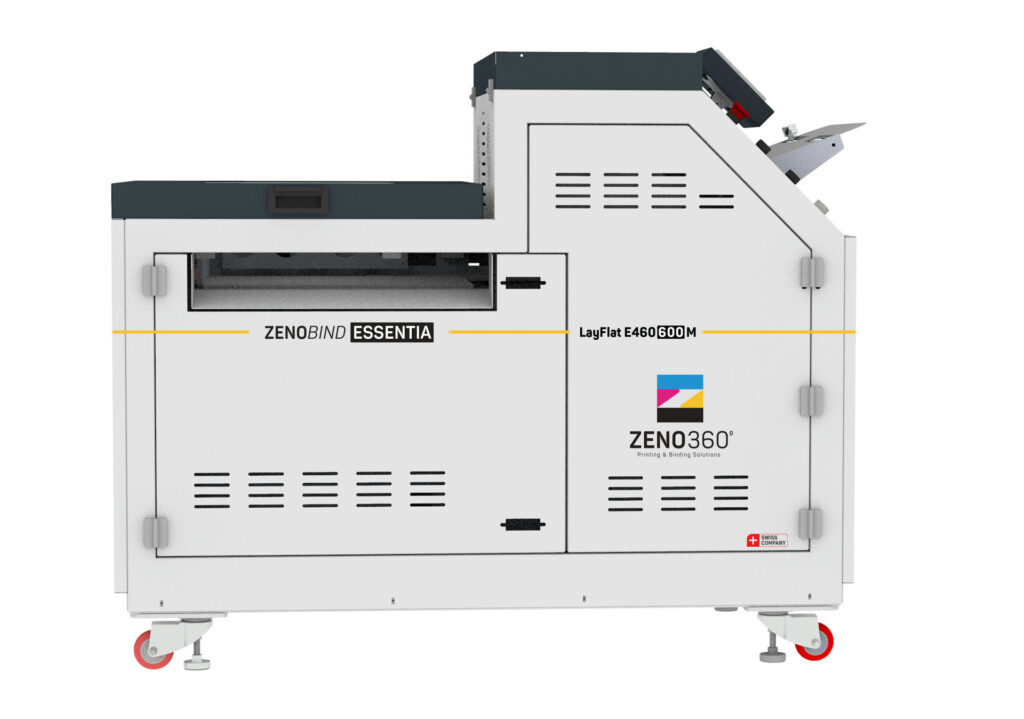

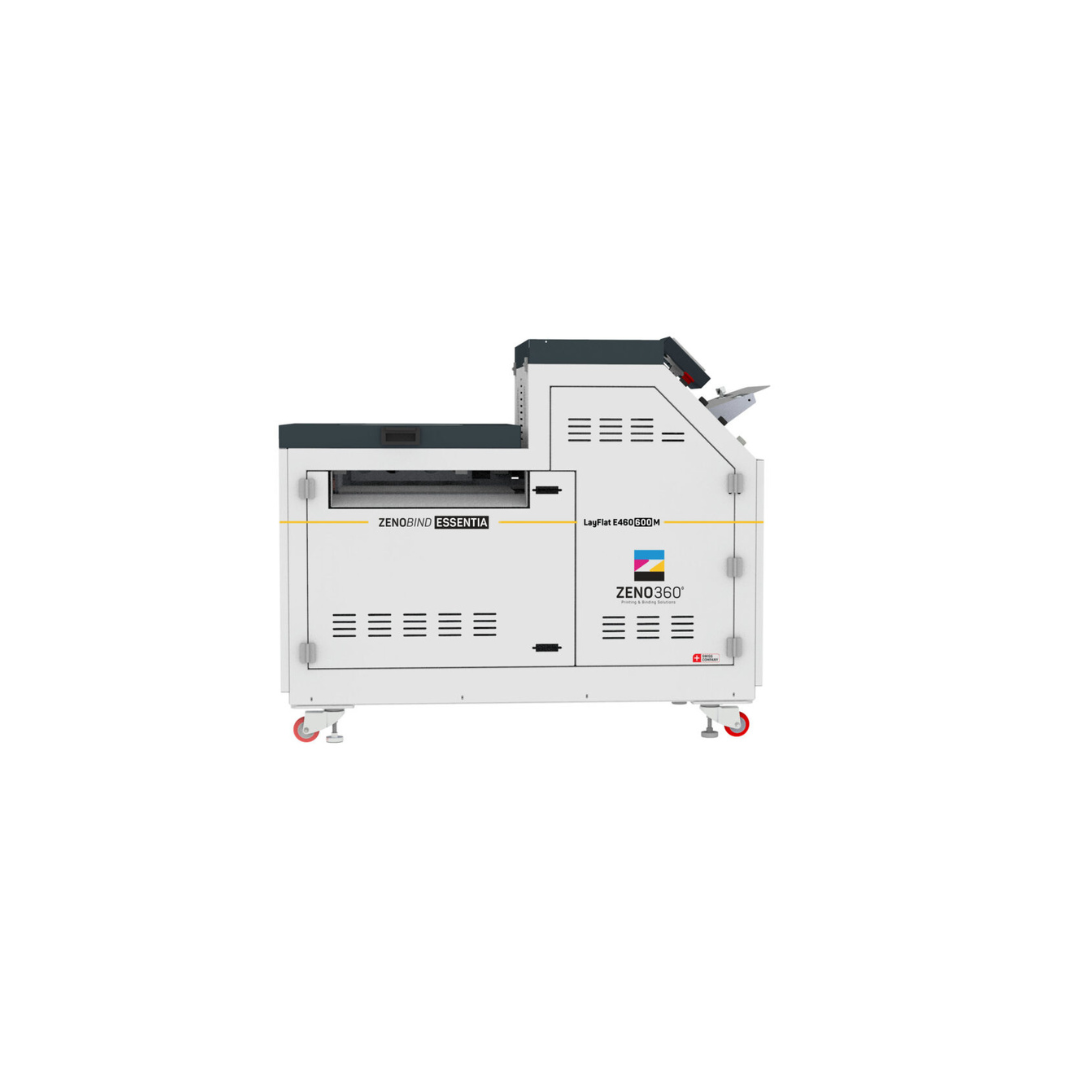

Zeno Layflat E460-600 M

Zeno Layflat E460-600 M is a semi automatic book block system which produces Layflat book blocks from single folded sheets.

The system is capable of making photo books either by gluing paper back-to-back sheets or by inserting cardboard between the sheets for a more rigid page.

A compact design allows minimum floor space being required for operation

Key Features

• Manual feeder for folded sheets and cardboard
• Easy to operate via touch screen
• Flexible production for different sizes: 6”x 6” to 18“x18“
• Layflat binding technology
• Hotmelt gluing technology: lower cost and quicker dry-to-dry time

Click here for more information.

Brand

Zeno 360

Specs

Specifications

• Book block height: 6”-18” (152mm-460mm)
• Book block width (open): 12”-36” (305mm-915mm)
• Maximum thickness of book block: 50mm
• Cardboard: With or without
• Glue: Hot melt
• Thickness of cardboard: 0.35mm-1mm
• Thickness of paper: 0.15mm-0.3mm
• Speed: 600 cycles/hour
• Power Supply: 220V 50HZ Single phase
• Maximum power consumption: 2000W
• Machine dimension: 1.214m (L) x 0.8m (W) x 1.16m (H)
• Weigh(approx.): 350kg
• Air compressor: 0.6-0.7mpa, >180L/min
