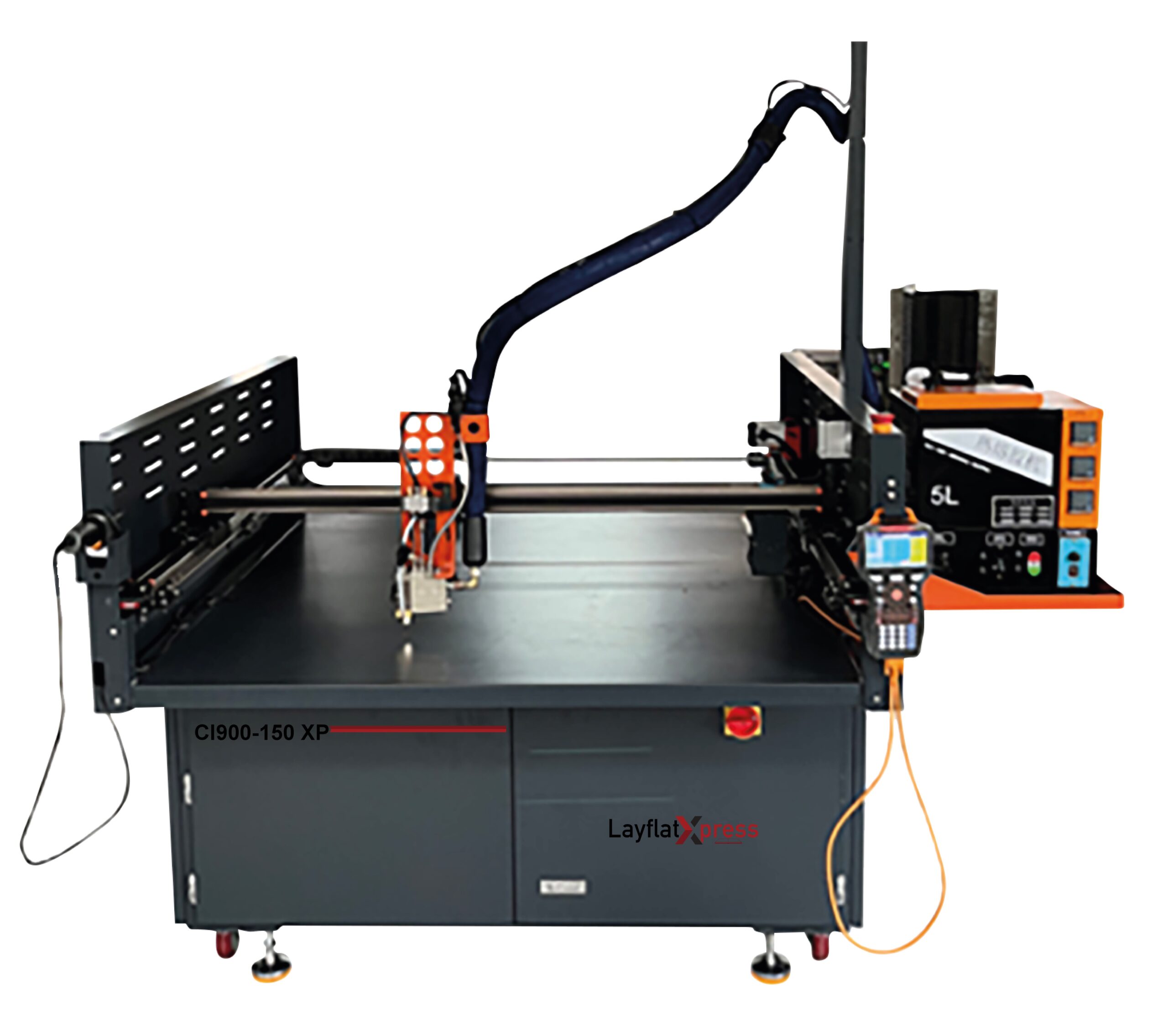

LayflatXpress CI900-150 XP – Semi Automatic casing in machine

Description

LayflatXpress CI900-150 is a semi automatic casing in machine. You may preset the trace of hotmelt which needs to spray onto the cover. The machine sprays the hotmelt onto the cover according to the preset data. The preset data can be selected from the control panel or use bar code scanner to read the data.

Key Features

• Hotmelt gluing technology: cheaper cost and faster delivery;
• Hotmelt glue to replace double side tape, it saves the cost of material and labor;
• Easy to operate via touch screen;
• Flexible production for different sizes and shapes;
• Easy clean spray platform;

Brand

LayflatXpress

Specs

Specifications

• Maximum spray platform size : 900mm-900mm
• Height of spray : 10-35mm
• Size of spray : 10-15mm
• Capacity of hotmelt tank : 5L
• Glue : Hot Melt
• Power Supply : 220V 50HZ Single phase
• Maximum power consumption : 2500W
• Machine dimension : 1400(L) * 1900(W) * 2000(H) * mm
• Weight : 100Kg
